Titan Aircraft

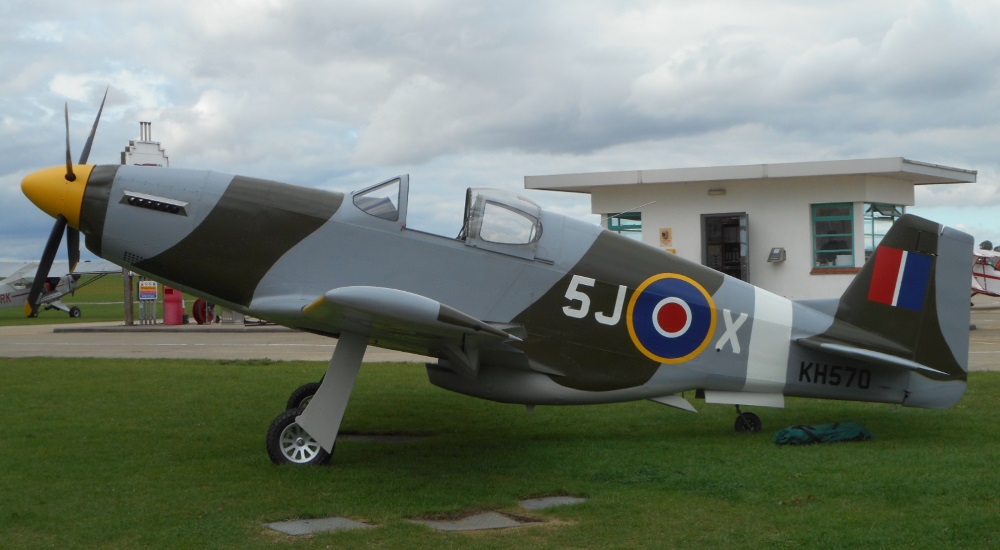

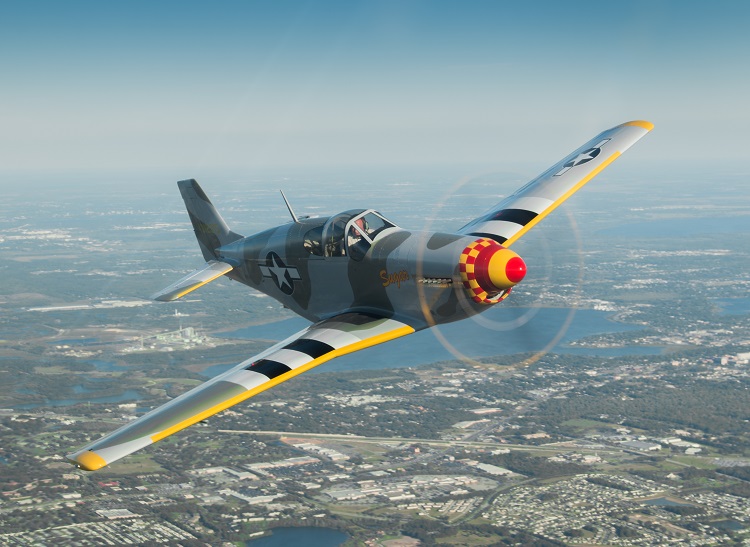

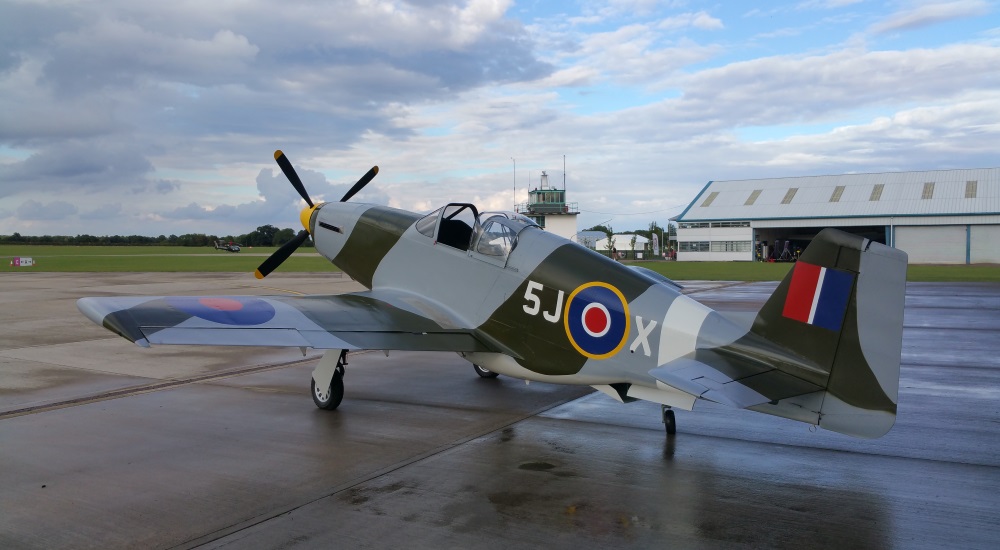

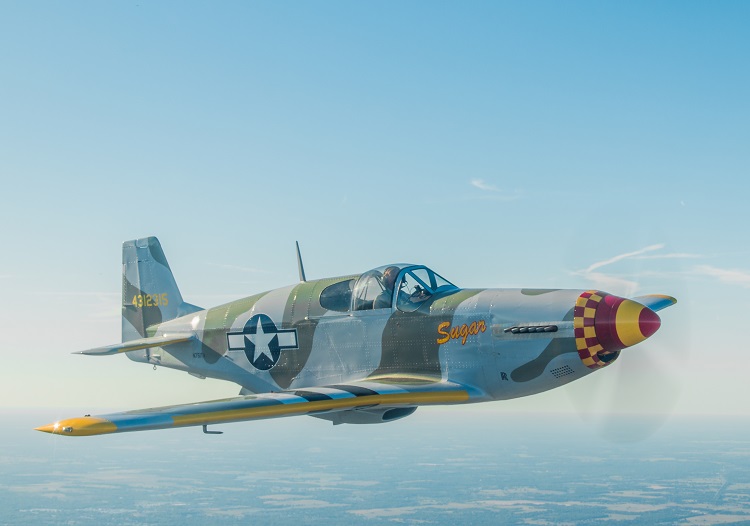

T-51B Mustang
Titan Aircraft is pleased to offer the T-51B Mustang. This P-51B replica incorporates material and systems not commonly found in comparably priced aircraft. This, combined with Titan Aircraft's renowned reputation for high quality products, superior aircraft performance, and outstanding customer support, is sure to provide the kit builder and pilot a very pleasurable experience.

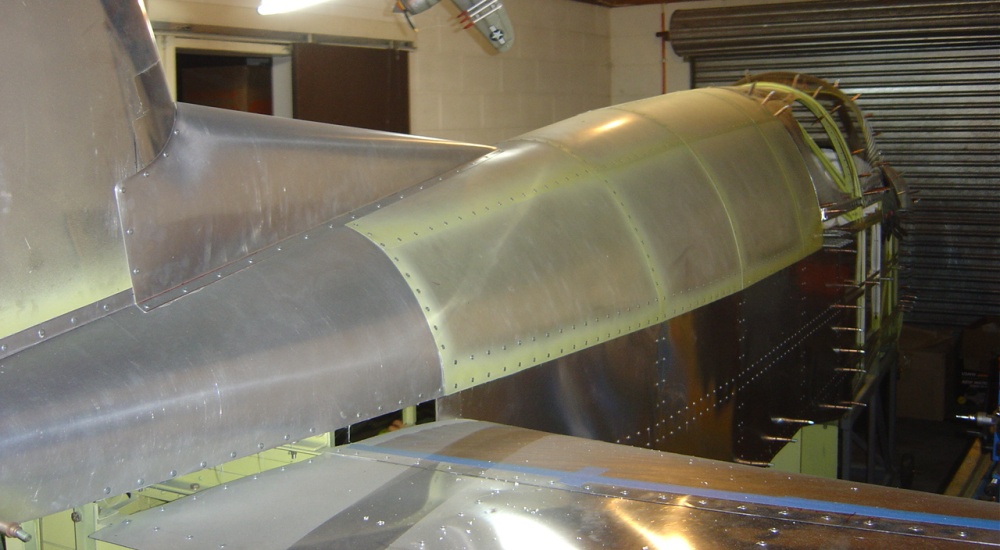

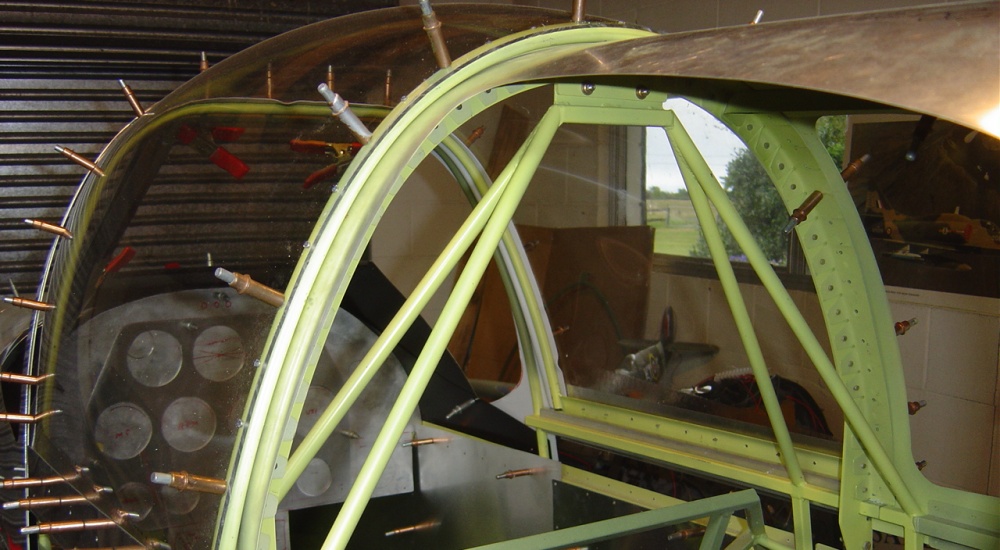

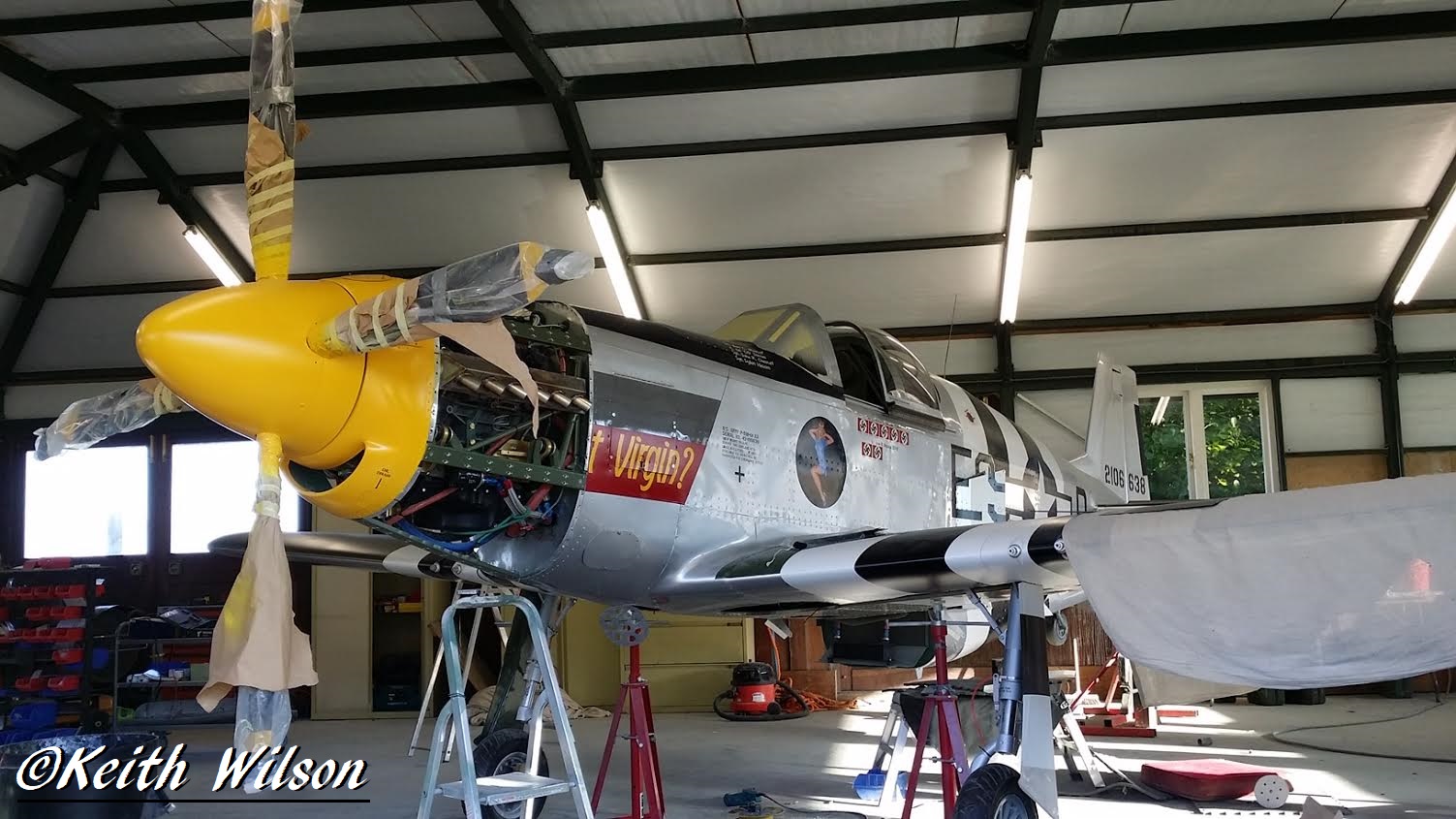

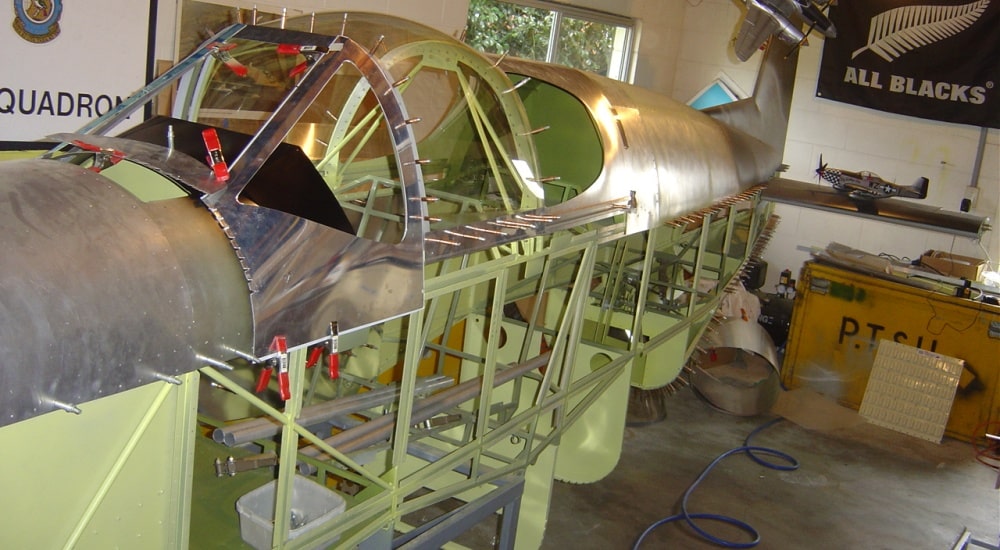

This kit has a documented build time of 1,600 hours and includes all required materials, components, and fasteners, with the exception of the engine, propeller, and instruments. When equipped with the 245 hp Honda 3.5L V6 engine, a scale 4-blade constant speed propeller, and a full complement of necessary flight instruments, a finished T-51B could cost well under $110,000.
Titan Aircraft is providing an aircraft that combines friendly low speed handling characteristics with agility and high performance. The T-51B is rated at a +6g / -4g load limit capability at a weight of 1,650 lbs. When equipped with the Honda 3.5L V6 engine and the landing gear retracted, a T-51B cruises around 180 mph and has a climb rate of approximately 2,500 f/m. In landing configuration, the stall speed is in the 50 mph range.
Specifications
| Standard | Metric | |
|---|---|---|
| Empty Weight: | 1,050 - 1,400 lbs | 478.3 - 635 kg |
| Gross Weight: | 1,850 - 2,250 lbs | 839.1 - 1020.6 kg |
| Length: | 23 ft 6 in | 7.16 m |
| Height | 9 ft 2 in | 2.79 m |
| Height: | 9 ft 2 in | 2.79 m |
| Wing Span: | 24 ft | 7.32 m |
| Standard Wing Area: | 118 sq ft | 10.96 m |
| Long Wing Area: | 130 sq ft | 12.08 sq m |
| Cabin Width: | 26 in | 660.4 mm |
| Cabin Head Room: | 48 in | 1,219.2 mm |
| Cabin Leg Room: | 46 in | 1,219.2 mm |
| Fuel Capacity: | 26 gal | 98.4 L |
| Engine: | Rotax 912/914, Suzuki V6, Honda V6, GM V8, & BMW V12 | |
| Power: | 100 - 300 hp | 74.6 - 224 kW |
| VNE: | 215 mph | 346 kph |
| Cruise Speed: | 150 - 210 mph | 241 - 338 kph |
| Stall Speed: | 50 - 60 mph | 80 - 97 kph |
| Range: | 720 mi | 1,159 km |
| Climb Rate: | 1,500 - 3,500 fpm | 7.6 - 17.8 m/s |
| Take Off Run: | 300 - 500 ft | 76.2 - 152.4 m |
| Landing Roll: | 300 - 500 ft | 91.44 - 152.4 m |
| Ceiling: | 16,000 - 18,000 ft | 4,876.8 - 5,486.4 m |
Kit Pricing*
| Standard Kits | |
|---|---|
| T-51B Model Mustang | $81,480.00 |
| Modular Kits | |
| Main Wing Panel Kit | $12,650.00 |
| Center Section Kit (*Flaps not Included) | $27,500.00 |
| Fuselage Kit | $23,760.00 |
| Tail Kit | $9,350.00 |
| Finish Kit | $9,350.00 |
| Fast Build Options | |
| Standard Wing | $8,000.00 |
| Long Wing | $15,000.00 |
| Fuselage | $25,000.00 |
| * Prices are subject to change without notice. | |
Additional Pricing*
| Description | Price |
|---|---|
| Fiberglass Wing Root Fairings | $1,650.00 |
| Front & Rear Seat Upgrades | $1,584.00 |
| Fiberglass Belly | $792.00 |
| Powder Coating | $1,080.00 |
| Aluminum Skin for Rudder | $300.00 |
| Aluminum Skin for Elevators | $474.00 |
| Rudder Trim System | $1,260.00 |
| Stars & Bars for Fuselage and Wings | $474.00 |
| Axe Handle Antenna | $420.00 |
| Main Gear Door Attach Mounts | $157.00 |
| Large Gear Legs - 3" Diameter | $3,432.00 |
| 6 Gallon Aluminum Internal Wing Tank - Set | $660.00 |
| 13 Gallon Fuselage Fuel Tank | $1,030.00 |
| Filtered Air Vents - Set | $57.00 |
| Aft Secondary Battery Mount | $210.00 |
| Aluminum Pitot Tube | $240.00 |
| Aluminum Fuel Filler Necks | $330.00 |
| Drop Tank Hard Points | $234.00 |
| Drop Tanks w/out Plumbing | $1,452.00 |
| * Prices are subject to change without notice. | |
| Lights | |
| T-51 LED Landing Light - | $650.00 |
| Microburst MB3 Kit - | $400.00 |
| * Prices are subject to change without notice. | |
Engine Options*
| Engines | |
|---|---|
| Rotax 912 ULS 2 - 100 hp (74 kw) @ 5,800 rpm | $23,642.00 |
| Rotax 912 ULS 3 - 100 hp (74 kw) @ 5,800 rpm | $27,941.00 |
| Rotax 915 - 140 hp (104.4 kw) | Call for Quote |
| BMW V12 - 300 hp (223.7 kw) | Call For Quote |
| BMW M73 - 300 hp (223.7 kw) | Call For Quote |
| Rotax 914 UL 3 - 115 hp (84.5 kw) @ 5800 rpm | $37,847.00 |
| Suzuki 2.7L V6† - 183 hp (136 kw) @ 6,000 rpm | $14,400.00 |
| Honda 3.5L V6† - 245 hp (183 kw) @ 5,750 rpm | $14,400.00 |
| GM LS3 6.2L V8† - 300 hp (224 kw) @ 4,000 rpm | $12,000.00 |
| Engine Accessories | |
| Rotax 912/914 Oil Cooler - Small - | $230.00 |
| Rotax 912/914 Oil Cooler - Large - | $250.00 |
| Rotax 912/914 Radiator - | $500.00 |
| Coolant Overflow Bottle - | $45.00 |
| Tornado 912 Exhaust System - | $3,620.00 |
| Tornado Jabiru 2200/3300 Engine Mount - | $1,299.60 |
| Honda HP Cams - | $1,500.00 |
| GM LS3 V8 Conversion Kit† - | $20,150.00 |
| BMW V12 Conversion Kit - | Call for Quote |
| Rotax 912 Stainless Steel Exhaust - | $3,982.00 |
| Rotax 912 Engine Mount Hoop Assembly - | $1,440.00 |
| Rotax 912/914 Firewall Mount - | $1,800.00 |
| Rotax 912/914 Engine Mount Hardware Kit - | $474.00 |
| Secondary V6 Computer - | $3,000.00 |
| Honda Supercharger Kit - | $7,800.00 |
| V6 Converstion Kit (Less Engine) - | $23,760.00 |
| V6 Firewall FWD (Les Prop & Governor) *Special Order Item - | $37,800.00 |
| GM LS3 Conversion Kit (Less Engine) - | $25,000.00 |
| GM LS3 V8 Firewall FWD (Less Prop & governor)*Pricing if Purchased w/Kit - | $38,500.00 |
| GM LS3 V8 Firewall FWD (Less Prop & Governor)*Pricing if Purchased as a Single Item - | $48,500.00 |
| † Price does not include engine or any other options. | |
| Props | |
| Titan Custom Hydraulic Propeller† - 69 in (175.3 cm) | $15,500.00 |
| Jihostroj Hydraulic Prop Governer - | $1,450.00 |
| Titan Hydraulic Propeller† - 84 in (213.4 cm) | $18,000.00 |
| Whirlwind 4 Blade Propeller 300 series † - 90" (228.6cm) | Call for Quote |
